31 Aug

Extracting text from PSD files

Typically, we need to translate hundreds of strings when localizing our games. Most strings are text messages which the game loads from some database or simple text file. However, we often have to handle localization of several PNG images, such as the one below.

AWESOME! message in DragonScales

Such PNG images are exported from PSD files which must obviously contain at least one Text Layer. To speed up the localization process we have a little Photoshop script which opens the PSD files and extracts all the text we have to translate. PSD files are grouped in directories corresponding to the tileset they belong to. For instance, this would be a typical directory structure for the DragonScales games:

images/
    board/
        awesome.psd, great.psd, ...
    cards
        youwin.psd, sorry.psd, ...
    ending
        congratulations.psd, ...
    levelselect
        clickhere.psd, ...
    mainmenu
        welcome.psd, ...
    etc

A simplified but functional version of the script we use is this:

#target photoshop

var target = "/C/projects/ds/images";
var toLocalize = new Array();
var totalProcessed = 0;
var warningsFiles = new Array();

function log(msg) {
	$.writeln(msg);
}

function processPSDFolder(dir) {
	var files = dir.getFiles("*.psd");
    log("===============================================");
    log(dir + " -> "+ files.length);
    log("===============================================");
	for (var i = 0; i < files.length; i++) {
    	var doc = app.open(files[i]);
    	log("  file: " + files[i]);
        totalProcessed++;
        if ( doc.artLayers.length == 0 ) {
            log("   -> WARNING: ZERO TEXT LAYERS? THEY SHOULD NOT BE IN GROUPS.");
            warningsFiles.push(files[i]);
        }
    	for (var j = 0; j < doc.artLayers.length; j++) {
        	var lyr = doc.artLayers[j];
        	if (lyr.kind == LayerKind.TEXT) {
            	var lyr = doc.artLayers[j];
            	log("   ->" + lyr.textItem.contents);
            	toLocalize.push(lyr.textItem.contents);
        	}
     	}
    	doc.close(SaveOptions.DONOTSAVECHANGES);
	}
}

function saveStrings() {
	var out = new File(target + "/strings.txt");
	out.open("w");
	for (var i = 0; i < toLocalize.length; i++) {
		var str = toLocalize[i];
		out.writeln(str);
	}
 	out.close();
}

var root = Folder(target).getFiles();
for ( var i = 0; i < root.length; i++ ) {
	var fileFoldObj = root[i];
	if ( fileFoldObj instanceof File ) {
        // Discard files at this level
	} else {
         processPSDFolder( Folder(fileFoldObj) );
	}
}
saveStrings();
log("Total PSDs processed: " + totalProcessed);
log("Warnings: " + warningsFiles.length);
for ( var i = 0; i < warningsFiles.length; i++ ) {
	log(" " + warningsFiles[i]);
}

Observations:

  • target is the path to your directory structure holding the PSD files.
  • The strings to be translated will we written to file strings.txt under your target directory.
  • This script looks for text layers on the top level of the PSD. It can be easily extended to inspect layers in groups, though.
  • We use warnings to be notified about files not containing Text Layers. These might be files requiring special exporting and extra formatting, and therefore we’ll have to handle such files exceptionally.
17 Aug

What we have been working on

Since the launch of DragonScales 3 in May we’ve been very busy handling all the distribution process, replying to customer emails, attending the accounting side, etc. In short, we’ve been handling the business part of IKIGames. However, we also started tackling the design of our next title: DragonScales 4. Yet more, we’ve also worked on a few subtasks mostly related to updating several games of ours. Specifically, this is what we’ve been addressing:

  1. Revamping of DragonScales internal engine.
  2. Design of DragonScales 4.
  3. Design of a special version of DragonScales for advanced players.
  4. Localization of the original DragonScales into Japanese.
  5. DragonScales 3 for Android (complete, but yet to be released.)
  6. Production of a new build for The Rainbow Machine (German version.)
  7. A new build for NagiQ 2 which fixed a few issues (already live here on our site.)
  8. Yet another build for NagiQ 2 suitable for localization (this localization of NagiQ 2 is currently a work in progress.)

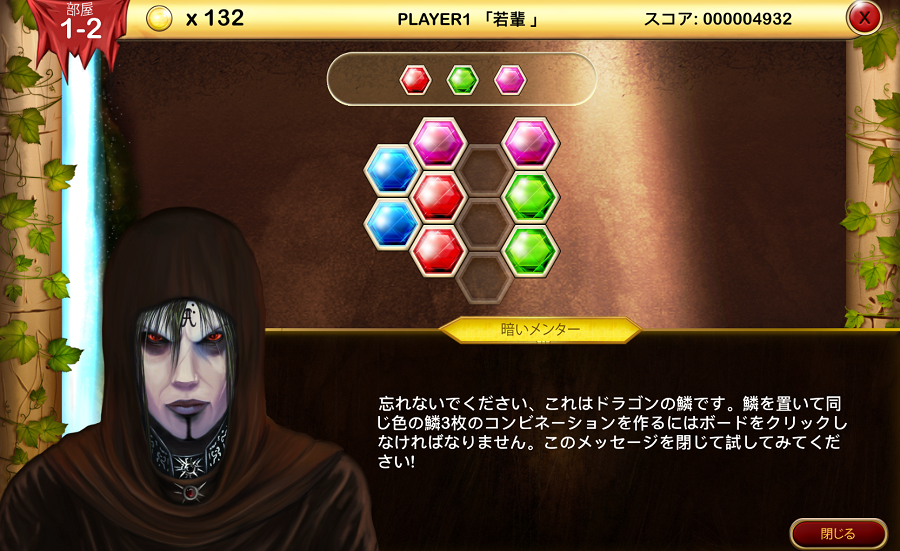

The original DragonScales in Japanese!

In the next weeks we’ll keep working on the first 3 tasks.
